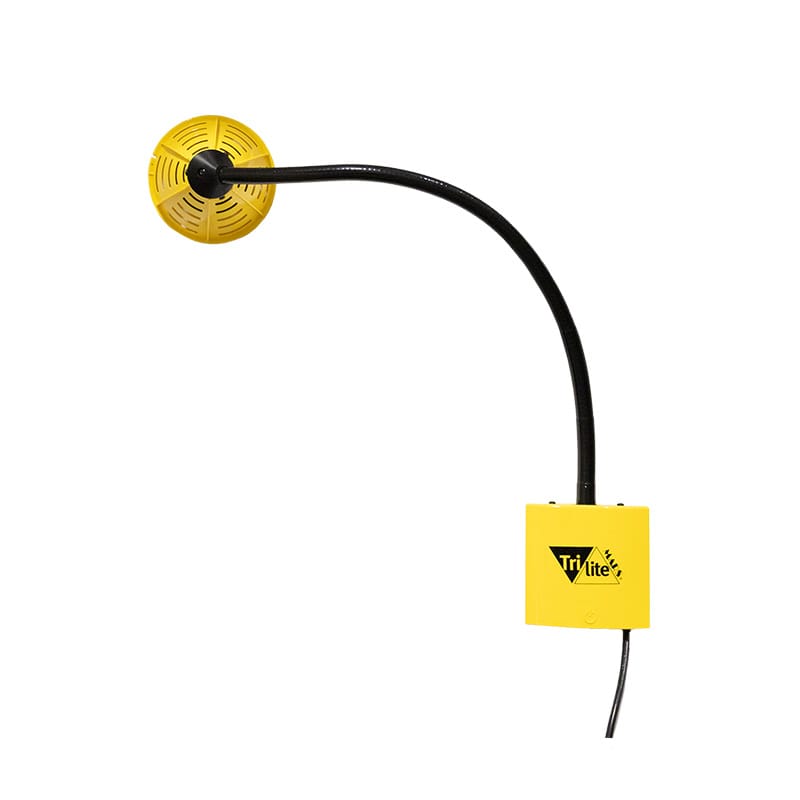

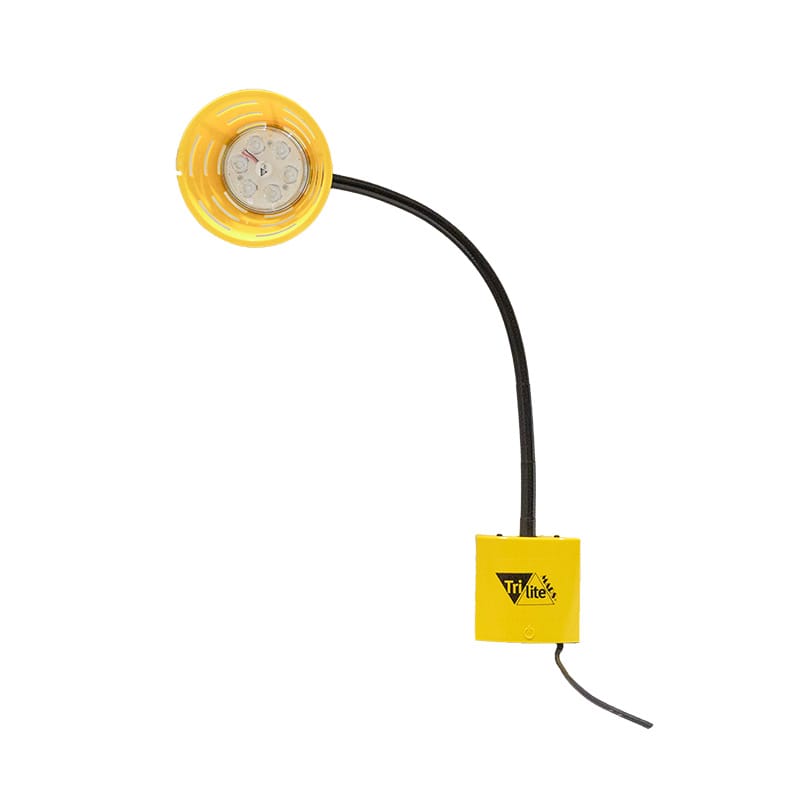

DLCGN Classic Gooseneck Dock Light

The DLCGN Classic Gooseneck Dock Light is engineered to deliver precise illumination to the back of a 53′ trailer while maintaining position and resisting sagging over time. Its vertically oriented flexible arm resists sagging over time while allowing smooth, controlled positioning, ensuring reliable, targeted task lighting without constant adjustment.

Engineered for durability and ease of use, the DLCGN features a reinforced steel flex arm that becomes stiffer during initial operation, maintaining strength and reliable positioning through tens of thousands of articulations. A purpose-built 45° light head adapter directs illumination deeper into trailers while reducing repositioning effort, improving workflow efficiency, and operator visibility. Impact-resistant polycarbonate enclosure and light head construction absorb accidental contact with trailers and equipment, protecting internal components and resisting corrosion and long-term discoloration.

Built to adapt to a wide range of facility requirements, the DLCGN Classic Gooseneck Dock Light offers multiple lighting configurations, including a maintenance-free integrated LED module or PAR38 lamp options for maximum flexibility. Prewired for easy installation and operation, the DLCGN delivers the durability, precision, and performance facilities rely on to keep loading operations running safely and efficiently.

FEATURES:

  • Flexible gooseneck arm with 45° light head adapter allows for precise light placement around dock door tracks with minimal adjustment.
  • Vertical flex arm orientation minimizes long-term sagging.
  • Steel outer arm with internal spring maintains precise positioning and becomes stiffer during initial use for long-term reliability.
  • Vinyl arm tubing resists grime buildup, preserving ease of positioning and protecting against corrosion​
  • Smooth light head geometry prevents snagging on doors or equipment
  • Impact-resistant polycarbonate light head and enclosure resist corrosion and discoloration

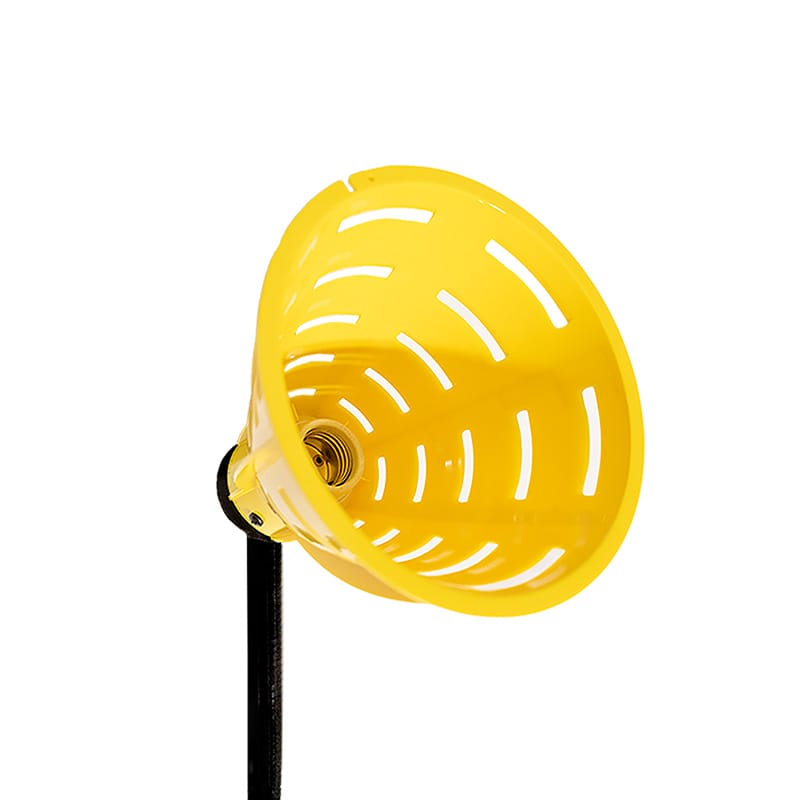

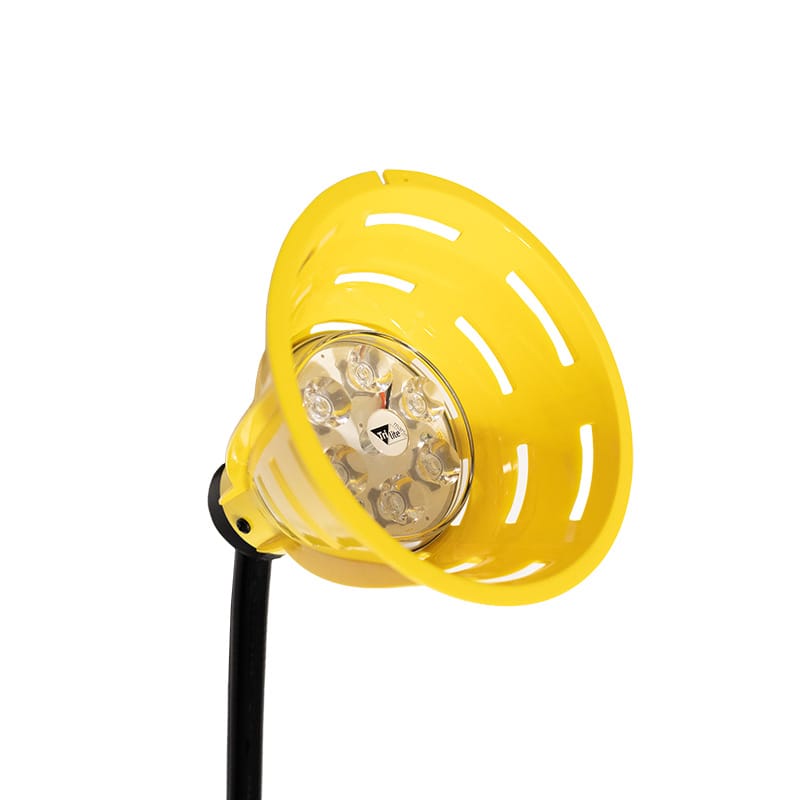

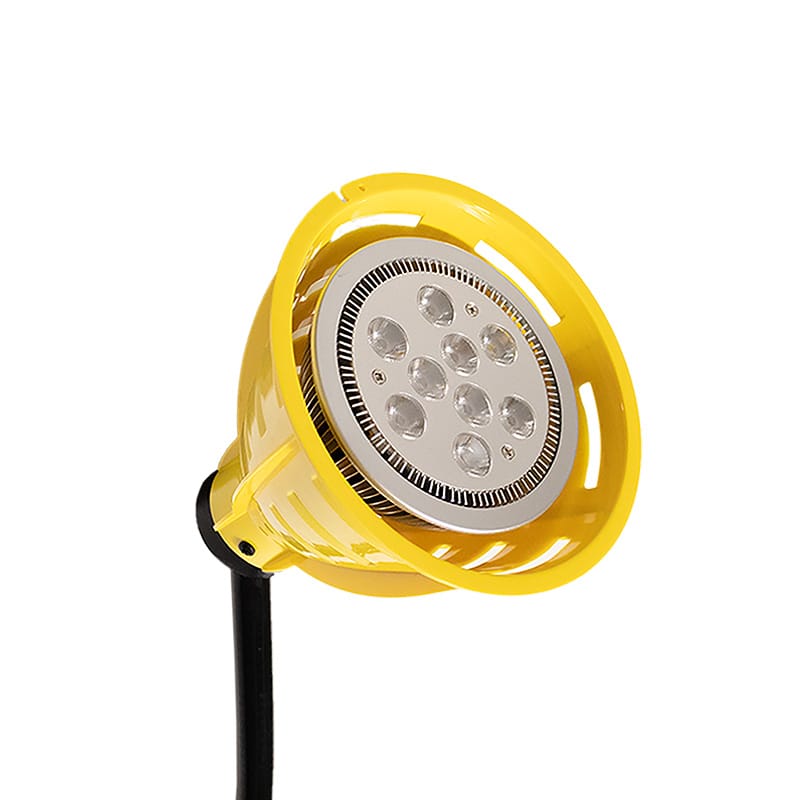

  • Multiple light head configurations available: Integrated LED, PAR38 LED (wire guard included), or customer-supplied PAR38 bulb (wire guard included)
  • Prewired with 6 ft power cord for easy installation
  • Made in USA
Part Number Input Power Wattage Weight Lumens Beam Angle CRI CCT
DLCGN-L2-27 120V, 60 Hz 16.3 9.0 1669 10 80 5000K
DLCGN-PLED-27 120V, 60 Hz 15.0 8.8 1010 15 ≥ 75 6000K
DLCGN-P-27 120V, 60 Hz Varies depending on customer-supplied PAR38 bulb
Name Download
DLCGN Product Sheet Download
DLCGN Instructions Download
DLCGN Drawing Download
