Dock Light Arms

Categories: , Application:

Tri Lite offers dock light arms to be sold separately from lamp heads. Purchase longer arms to extend the reach of current lamp heads, or as a replacement for worn out arms on existing lights.

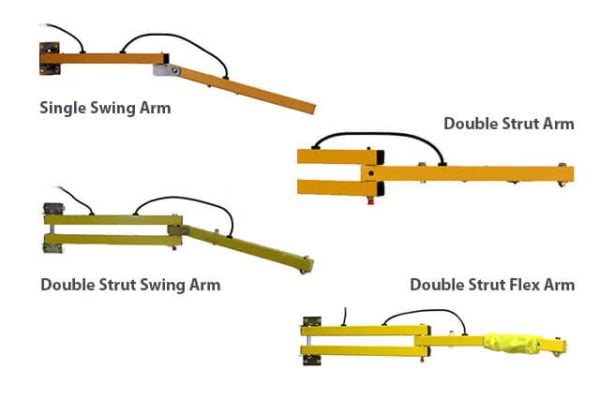

Part Number Arm Type Arm Length
DL24ARM Double Strut 24-inch
SD24ARM Single Strut 24-inch
DL40ARM Double Strut 40-inch
DSDL40ARM Double Strut Adjustable 40-inch
FLDL40ARM Flex Double Strut 40-inch
SD40ARM Single Strut Adjustable 40-inch
DL60ARM Double Strut 60-inch
DSDL60ARM Double Strut Adjustable 60-inch
FLDL60ARM Flex Double Strut 60-inch
SD60ARM Single Strut Adjustable 60-inch
DL90ARM Double Strut 90-inch
DSDL90ARM Double Strut Adjustable 90-inch
FLDL90ARM Flex Double Strut 90-inch
DL114ARM Double Strut 114-inch
DSDL114ARM Double Strut Adjustable 114-inch
Name Download
Dock Light Arm Variations Download
Loading Dock Lighting Systems Brochure Download
LED Verladeleuchten für Laderampen (Deutsch) Download
Variantes de Bras de Station (Français) Download
Dock Arm Parts Breakdown Download
Dock Light Installation Sheet Download
Dock Light Architectural Drawings Download

Special Features

Swing Hinge

Swing Hinge Dock Light Arm

“Swing” dock lights feature a hinge that allows both vertical and horizontal adjustment of the arm.

Flex Head

Flex Arm Dock Light
Flex dock lights combine the strength of a standard dock light arm with the added flexibility of an impact absorber that bends the head away when bumped by a moving forklift or dock door.

Heavy Duty

Heavy Duty Dock Light
Heavy duty lamp heads are designed for the most demanding environments including wet and damp locations. Their rugged cast aluminum housing includes a shatterproof polycarbonate lens cover.

Fan

Fan Only Dock Light

Fans can be used separately or in conjunction with many Tri Lite dock light heads. The high capacity 3-speed fan provides air circulation and cooling throughout the trailer. 18″ fan rated for 3000 cfm.

Loading Dock Light Heads

Heavy Duty Lamp Head (HLED)

Heavy Duty Lamp Head (HLED)
Virtually indestructible! The HDLED has a cast aluminum body designed for the most demanding environments including wet and damp locations.

Metal Lamp Head

Metal Lamp Head
Traditional, powder coated metal light head featuring all steel construction for long life.

Polycarbonate Lamp Head

Polycarbonate Lamp Head
Unique, patented polycarbonate head is rugged and economical, it’s our most popular lamp head!

Arm Type

Single Strut Arm

Single Strut Arm

Single Struct arms are an economical lighting solution for low to mid volume loading docks. The arm features a hinge that allows both vertical and horizontal adjustment of the arm.

Double Strut Arm

Dual struts give this arm the strength to survive in the busiest and most demanding warehouses. The dual strut design will also support a fan or light/fan combination.
How to Specify Dome Color
How to Pick Dome Color
