DL2 Standard Loading Dock Arm

Step into the forefront of dock lighting innovation with our latest DL2 Series, comprising cutting-edge loading dock arms and LED lights. Meticulously engineered, the DL2 Series arms redefine industry standards, offering unparalleled weight capacity and strength while strategically minimizing the risk of sagging. This design precision ensures a lighting solution for any loading dock that not only prioritizes durability but also guarantees reliability, promising enduring performance in the face of diverse operational challenges.

Witness an immediate enhancement in the visual identity of your dock with the DL2 Series, featuring a modern and distinctive aesthetic that serves as a hallmark of progress in loading dock illumination. Beyond its striking appearance, the DL2 Series standard loading dock arms are at the forefront of functionality, providing a comprehensive solution for those seeking advanced performance in loading dock lighting.

In contrast to standard (non-integrated) loading dock arms, specifically designed for use with light heads, fans, or other accessories, the DL2 Series Loading Dock Arm elevates the concept of an upgrade to new heights. Elevate your loading dock experience and perceive a noticeable difference in both performance and durability. As you invest in the future of dock lighting, rest assured that our loading dock arms seamlessly integrate with state-of-the-art dock lights LED, ensuring optimal illumination and enhancing safety and efficiency on your loading dock.

Choose excellence and invest wisely in the future of dock lighting with the DL2 Series Loading Dock Arm. Illuminate your loading dock confidently, embracing a new era of efficiency, performance, and visual appeal. Elevate your dock lights LED experience with the DL2 Series, setting the stage for a brighter and more advanced loading dock environment.


  • The only dock light arm on the market that can store flat against the door.
  • Easy to install and retrofit: Universal brackets fit mounting holes of previously installed dock lights
  • Patented curved arm design fits around most door tracks without the need for additional tubing or joints
  • Bump-stop feature prevents arm from obstructing door
  • Safety bumpers on arm and heads protect operators from injuries and mitigate damage to the product
  • UL and cUL Listed
  • More sizes to choose from:
    • Single Arm length classes of 24” and 36”
    • Double Arm length classes of 40”, 48” and 60”
  • Made in USA
Part Numbers Length Arm Type Lamp Type

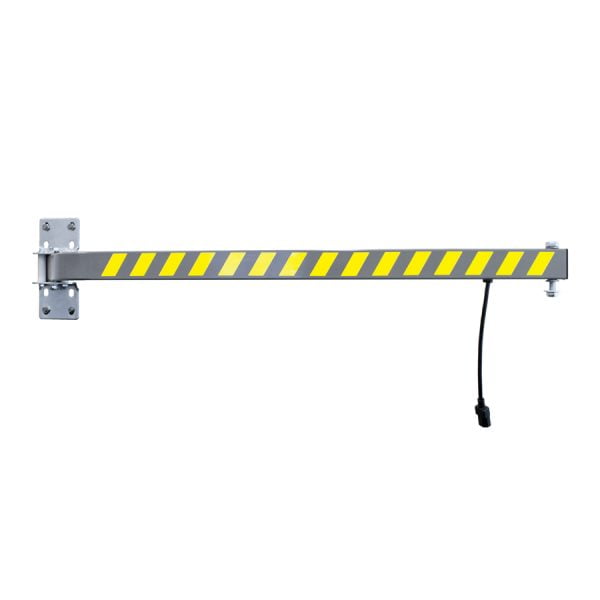

DL2-SA-24 24inch Single Arm Not included (Arm Only)
DL2-SA-36 36inch Single Arm Not included (Arm Only)
DL2-DA-40 40inch Double Arm Not included (Arm Only)
DL2-DA-48 48inch Double Arm Not included (Arm Only)
DL2-DA-60 60inch Double Arm Not included (Arm Only)

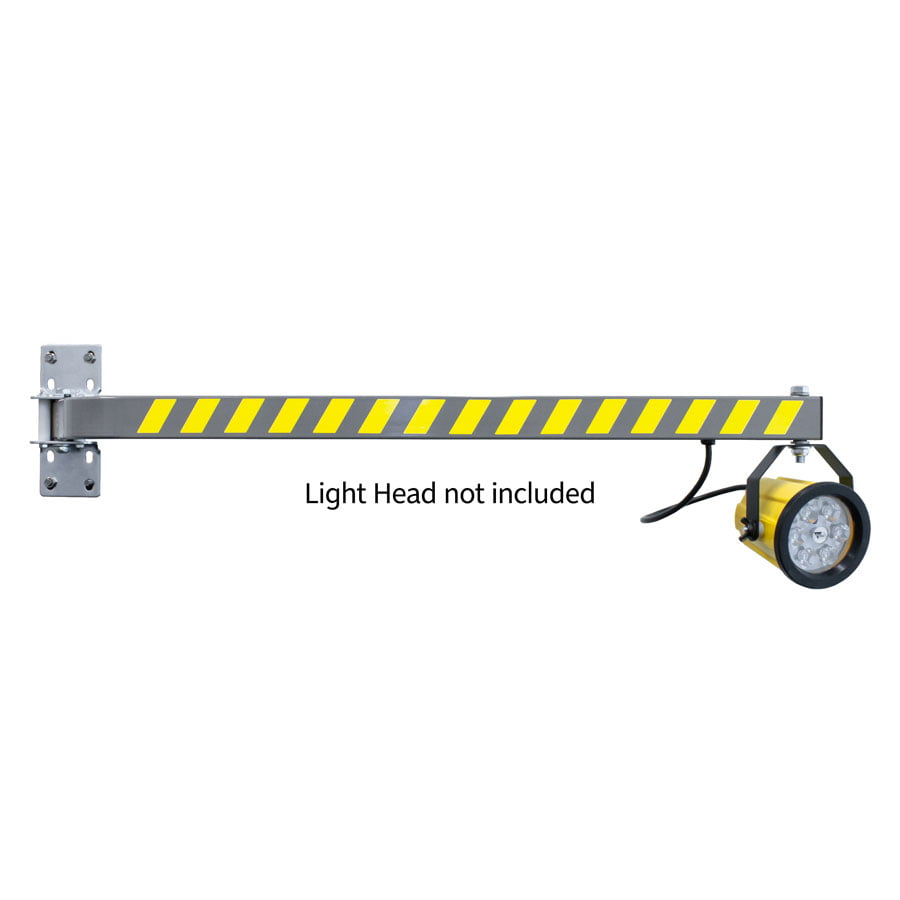

DL2-SA-24-PL2 24inch Single Arm Polycarbonate
DL2-SA-36-PL2 36inch Single Arm Polycarbonate
DL2-DA-40-PL2 40inch Double Arm Polycarbonate
DL2-DA-48-PL2 48inch Double Arm Polycarbonate
DL2-DA-60-PL2 60inch Double Arm Polycarbonate

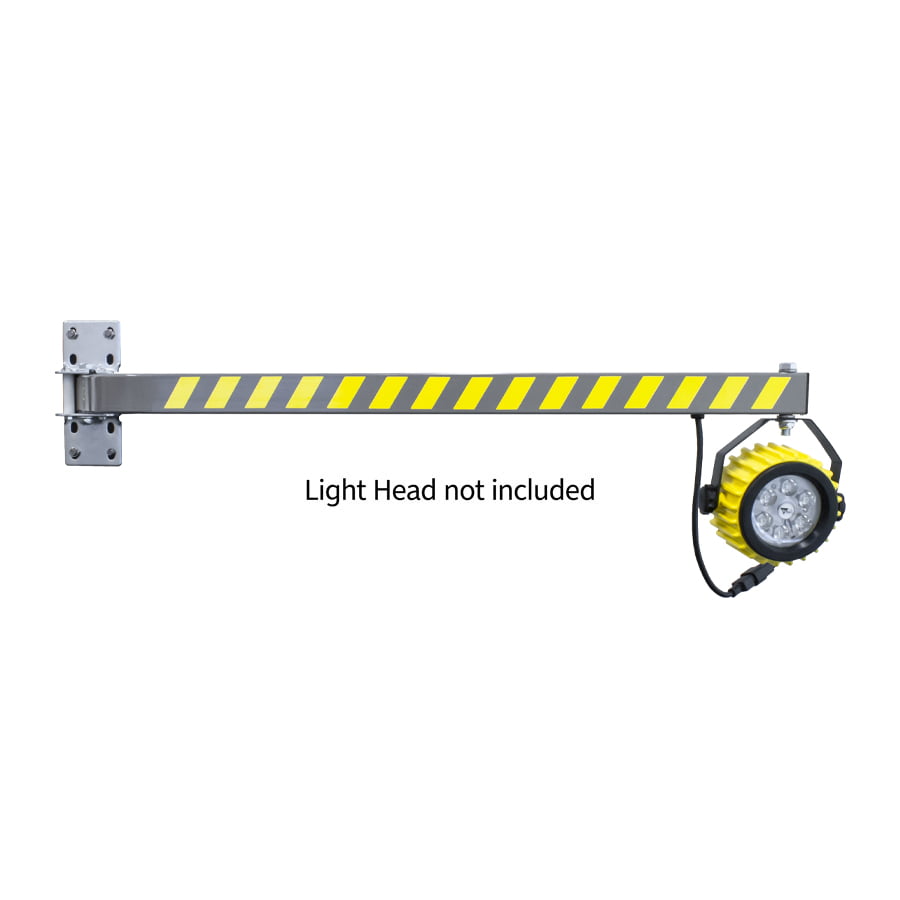

DL2-SA-24-HDL2 24inch Single Arm IP66 Rated “Heavy Duty”
DL2-SA-36-HDL2 36inch Single Arm IP66 Rated “Heavy Duty”
DL2-DA-40-HDL2 40inch Double Arm IP66 Rated “Heavy Duty”
DL2-DA-48-HDL2 48inch Double Arm IP66 Rated “Heavy Duty”
DL2-DA-60-HDL2 60inch Double Arm IP66 Rated “Heavy Duty”
Name Download
DL2 Brochure Download
DL2 Instructions Download
DL2 Spec Sheet Download
Light Heads Comparison Download

Special Features

Swing Hinge

Swing Hinge Dock Light Arm

“Swing” dock lights feature a hinge that allows both vertical and horizontal adjustment of the arm.

Flex Head

Flex Arm Dock Light
Flex dock lights combine the strength of a standard dock light arm with the added flexibility of an impact absorber that bends the head away when bumped by a moving forklift or dock door.

Heavy Duty

Heavy Duty Dock Light
Heavy duty lamp heads are designed for the most demanding environments including wet and damp locations. Their rugged cast aluminum housing includes a shatterproof polycarbonate lens cover.


Fan Only Dock Light

Fans can be used separately or in conjunction with many Tri Lite dock light heads. The high capacity 3-speed fan provides air circulation and cooling throughout the trailer. 18″ fan rated for 3000 cfm.

Loading Dock Light Heads

Heavy Duty Lamp Head (HLED)

Heavy Duty Lamp Head (HLED)
Virtually indestructible! The HDLED has a cast aluminum body designed for the most demanding environments including wet and damp locations.

Metal Lamp Head

Metal Lamp Head
Traditional, powder coated metal light head featuring all steel construction for long life.

Polycarbonate Lamp Head

Polycarbonate Lamp Head
Unique, patented polycarbonate head is rugged and economical, it’s our most popular lamp head!

Arm Type

Single Strut Arm

Single Strut Arm

Single Struct arms are an economical lighting solution for low to mid volume loading docks. The arm features a hinge that allows both vertical and horizontal adjustment of the arm.

Double Strut Arm

Double Strut Arm
Dual struts give this arm the strength to survive in the busiest and most demanding warehouses. The dual strut design will also support a fan or light/fan combination.
How to Specify Dome Color
How to Pick Dome Color
